Vishay

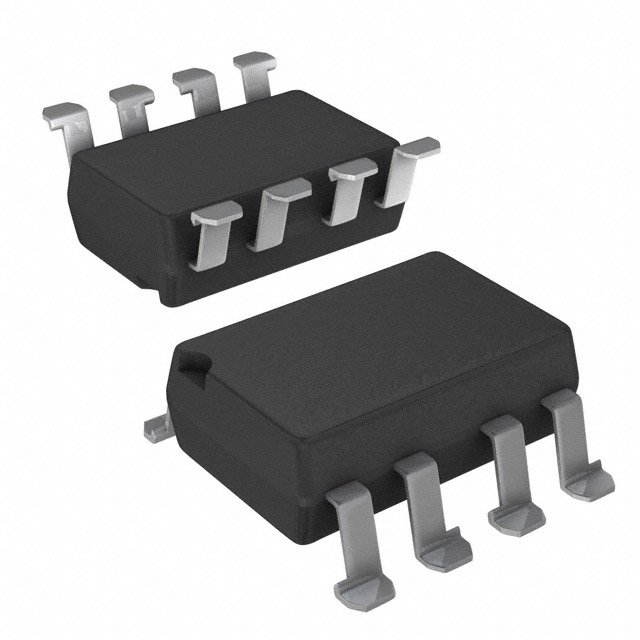

6N135-X017T Datasheet(PDF)
- 1. How to order 6N135-X017T?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that 6N135-X017T is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the 6N135-X017T. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the 6N135-X017T price and inventory displayed accurate?
- The price and inventory of 6N135-X017T fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | 6N135-X017T |
|---|---|
| Manufacturer | Vishay |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Current Transfer Ratio (Min) | 7% @ 16mA |
| Current Transfer Ratio (Max) | - |
| Turn On / Turn Off Time (Typ) | 300ns, 300ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor with Base |
| Voltage - Output (Max) | 15V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Current - DC Forward (If) (Max) | 25mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-SMD |
