Infineon Technologies
TLE7209-2R Datasheet(PDF)
- 1. How to order TLE7209-2R?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that TLE7209-2R is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the TLE7209-2R. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the TLE7209-2R price and inventory displayed accurate?
- The price and inventory of TLE7209-2R fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | TLE7209-2R |
|---|---|
| Manufacturer | Infineon Technologies |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | SPI |
| Technology | CMOS |
| Applications | General Purpose |
| Current - Output | 5A |
| Voltage - Supply | 5V ~ 28V |
| Voltage - Load | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

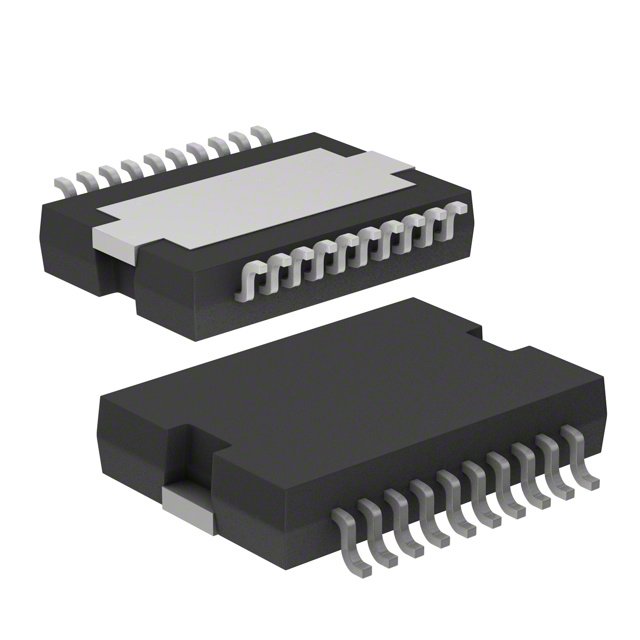

| Package / Case | 20-PowerSOIC (0.433", 11.00mm Width) |
| Supplier Device Package | PG-DSO-20-12 |
| Base Product Number | TLE7209 |
