Nisshinbo Micro Devices Inc.
R1205L821C-TR Datasheet(PDF)
- 1. How to order R1205L821C-TR?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that R1205L821C-TR is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the R1205L821C-TR. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the R1205L821C-TR price and inventory displayed accurate?
- The price and inventory of R1205L821C-TR fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | R1205L821C-TR |
|---|---|
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | R1205x |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Max) | 24V |
| Current - Output | 700mA (Switch) |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

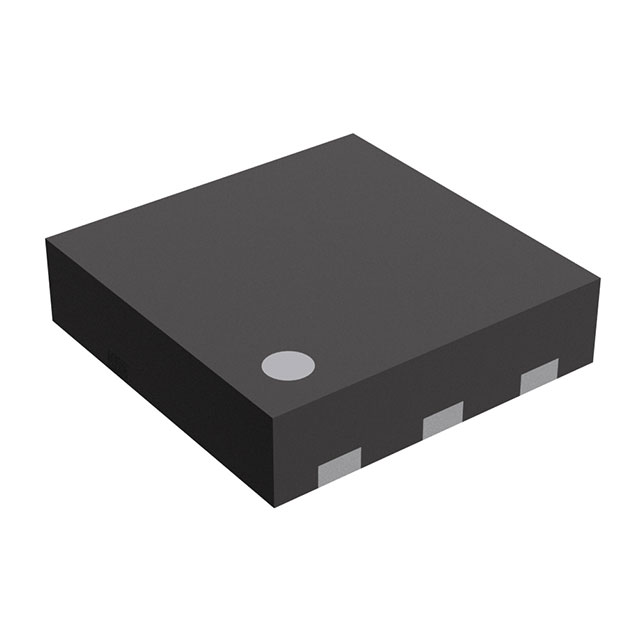

| Package / Case | 6-XFDFN Exposed Pad |
| Supplier Device Package | DFN1616-6B |
| Base Product Number | R1205 |
