Micro Commercial Co
1N4148W-TP Datasheet(PDF)
- 1. How to order 1N4148W-TP?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that 1N4148W-TP is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the 1N4148W-TP. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the 1N4148W-TP price and inventory displayed accurate?
- The price and inventory of 1N4148W-TP fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | 1N4148W-TP |
|---|---|
| Manufacturer | Micro Commercial Co |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 150mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |

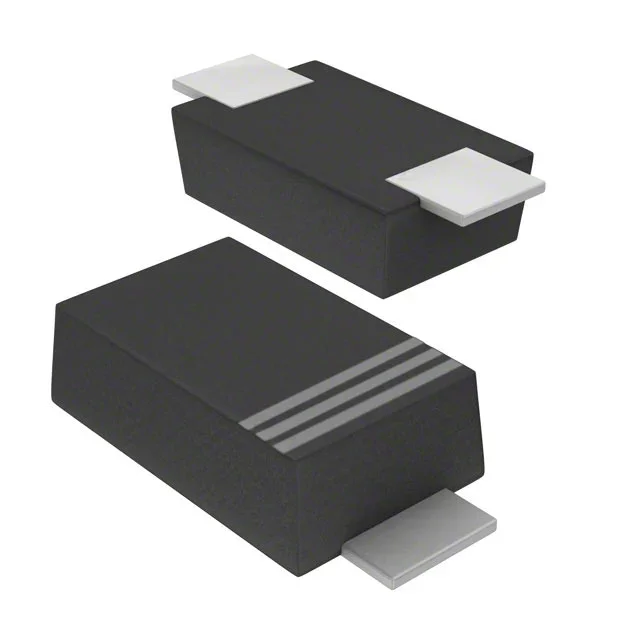

| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | 1N4148 |
