STMicroelectronics
- 1. How to order STI47N60DM6AG?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that STI47N60DM6AG is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the STI47N60DM6AG. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the STI47N60DM6AG price and inventory displayed accurate?
- The price and inventory of STI47N60DM6AG fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | STI47N60DM6AG |
|---|---|
| Manufacturer | ST |
| Series | MDmesh™ DM6 |

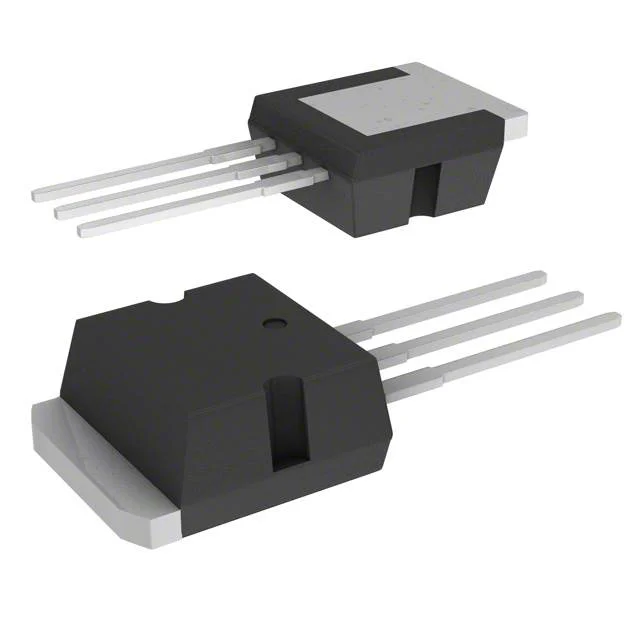

| Package / Case | TO-262-3 Long Leads, I²Pak, TO-262AA |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | N-Channel |
| Current - Continuous Drain (Id) @ 25°C | 36A (Tc) |
| Rds On (Max) @ Id, Vgs | 80mOhm @ 18A, 10V |
| Power Dissipation (Max) | 250W (Tc) |
| Vgs(th) (Max) @ Id | 4.75V @ 250µA |
| Supplier Device Package | TO-262 (I2PAK) |
| Grade | Automotive |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 600 V |
| Gate Charge (Qg) (Max) @ Vgs | 55 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 2350 pF @ 100 V |
| Qualification | AEC-Q101 |
| Base Product Number | STI47 |
