STMicroelectronics
VIPER37LE Datasheet(PDF)
- 1. How to order VIPER37LE?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that VIPER37LE is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the VIPER37LE. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the VIPER37LE price and inventory displayed accurate?
- The price and inventory of VIPER37LE fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | VIPER37LE |
|---|---|
| Manufacturer | ST |
| Series | VIPer™ plus |

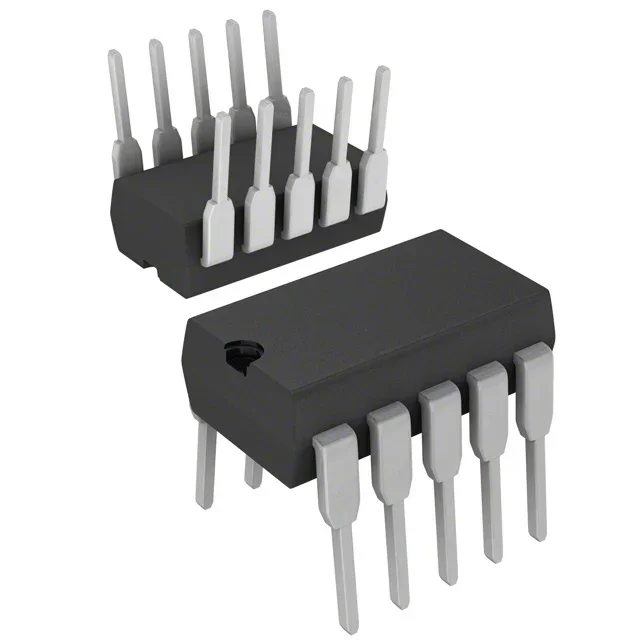

| Package / Case | 10-SDIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~150°C(TJ) |
| Duty Cycle | 80% |
| Frequency - Switching | 60kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 23.5V |
| Supplier Device Package | 10-SDIP |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Voltage - Start Up | 14 V |
| Power (Watts) | 20 W |
| Base Product Number | VIPER37 |
