Littelfuse

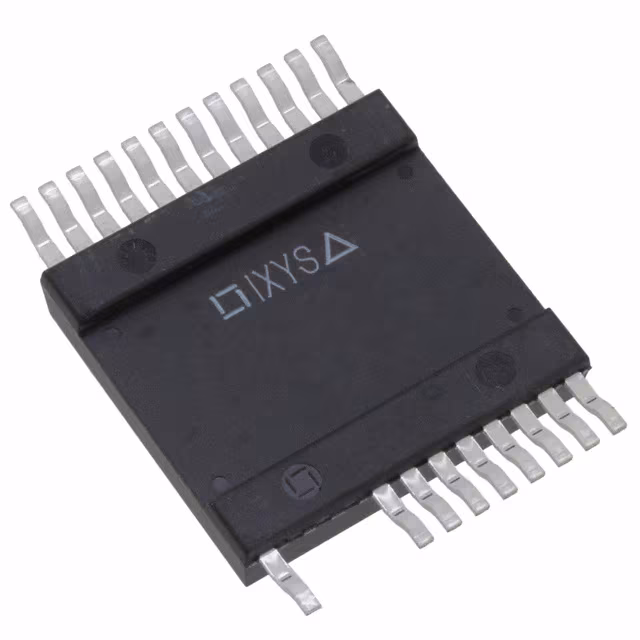

MMIX1X100N60B3H1 Datasheet(PDF)
- 1. How to order MMIX1X100N60B3H1?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that MMIX1X100N60B3H1 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the MMIX1X100N60B3H1. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the MMIX1X100N60B3H1 price and inventory displayed accurate?
- The price and inventory of MMIX1X100N60B3H1 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | MMIX1X100N60B3H1 |
|---|---|
| Manufacturer | Littelfuse |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 145A |
| Current - Collector Pulsed (Icm) | 440A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 70A |
| Power - Max | 400W |
| Switching Energy | 1.9mJ (on), 2mJ (off) |
| Input Type | Standard |
| Gate Charge | 143nC |
| Td (on/off) @ 25°C | 30ns/120ns |
| Test Condition | 360V, 70A, 2 Ohm, 15V |
| Reverse Recovery Time (trr) | 140ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 24-PowerSMD, 21 Leads |
| Supplier Device Package | 24-SMPD |
