Diodes Incorporated

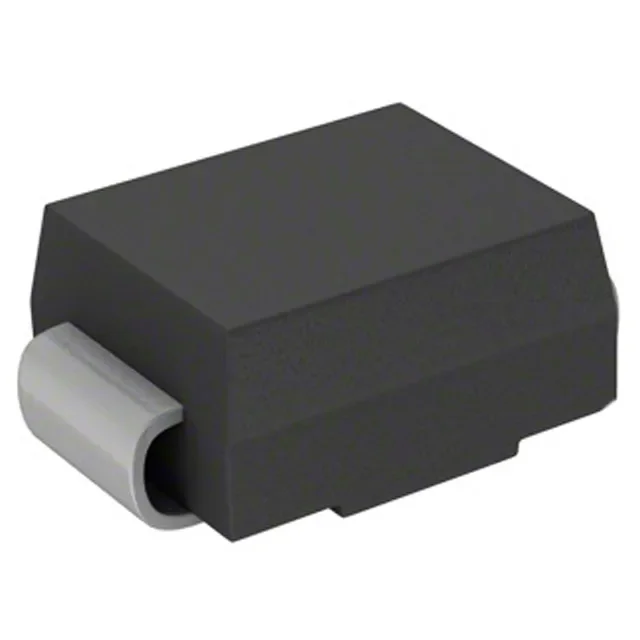

S1GB-13-F Datasheet(PDF)
- 1. How to order S1GB-13-F?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that S1GB-13-F is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the S1GB-13-F. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the S1GB-13-F price and inventory displayed accurate?
- The price and inventory of S1GB-13-F fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | S1GB-13-F |
|---|---|
| Manufacturer | Diodes Incorporated |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 3 µs |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Capacitance @ Vr, F | 10pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | S1G |
