onsemi
ESD7124MUTBG Datasheet(PDF)
- 1. How to order ESD7124MUTBG?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that ESD7124MUTBG is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the ESD7124MUTBG. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the ESD7124MUTBG price and inventory displayed accurate?
- The price and inventory of ESD7124MUTBG fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | ESD7124MUTBG |
|---|---|
| Manufacturer | onsemi |
| Type | Zener |
| Bidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max), 12V (Max) |
| Voltage - Breakdown (Min) | 5.5V, 13.3V |
| Voltage - Clamping (Max) @ Ipp | 9.5V, 15V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.35pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |

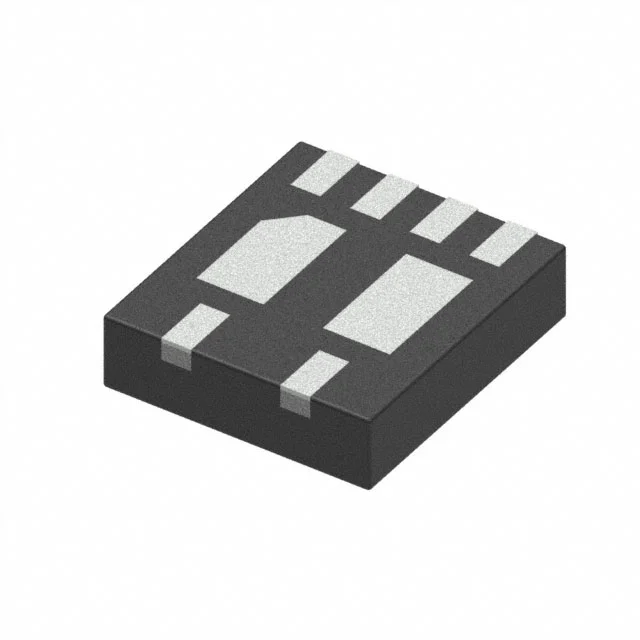

| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (1.8x2) |
| Base Product Number | ESD7124 |
