Littelfuse
IXYN75N65C3D1 Datasheet(PDF)
- 1. How to order IXYN75N65C3D1?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that IXYN75N65C3D1 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the IXYN75N65C3D1. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the IXYN75N65C3D1 price and inventory displayed accurate?
- The price and inventory of IXYN75N65C3D1 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | IXYN75N65C3D1 |
|---|---|
| Manufacturer | Littelfuse |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 150 A |
| Current - Collector Pulsed (Icm) | 360 A |
| Vce(on) (Max) @ Vge, Ic | 2.3V @ 15V, 60A |
| Power - Max | 600 W |
| Switching Energy | 2mJ (on), 950µJ (off) |
| Input Type | Standard |
| Gate Charge | 122 nC |
| Td (on/off) @ 25°C | 26ns/93ns |
| Test Condition | 400V, 60A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 65 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Chassis Mount |

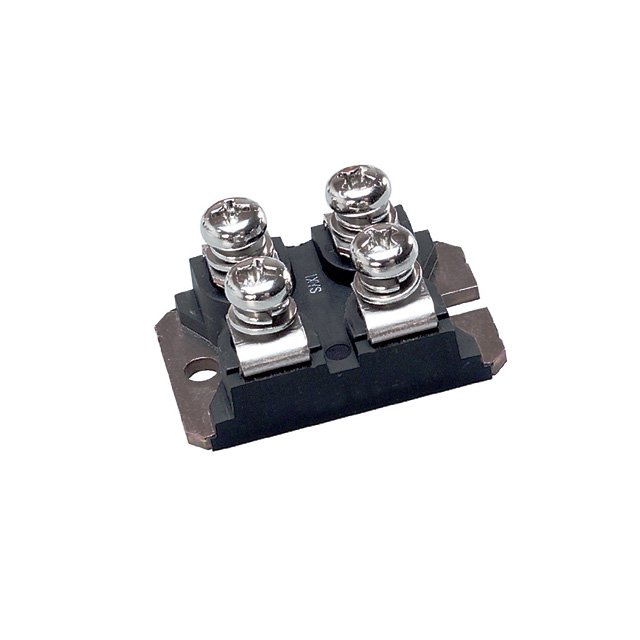

| Package / Case | SOT-227-4, miniBLOC |
| Supplier Device Package | SOT-227B |
