MDD
ESD5Z24 Datasheet(PDF)
- 1. How to order ESD5Z24?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that ESD5Z24 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the ESD5Z24. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the ESD5Z24 price and inventory displayed accurate?
- The price and inventory of ESD5Z24 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | ESD5Z24 |
|---|---|
| Manufacturer | MDD |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V |
| Voltage - Breakdown (Min) | 26V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | 50pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |

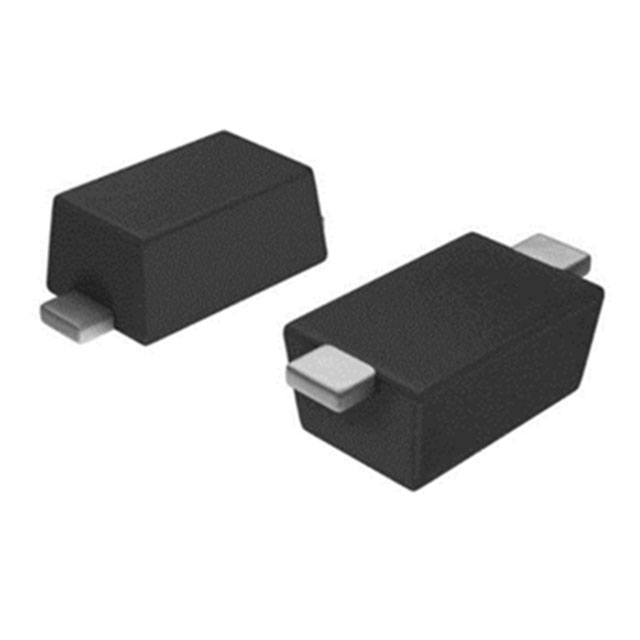

| Package / Case | SOD-523 |
| Supplier Device Package | SOD-523 |
