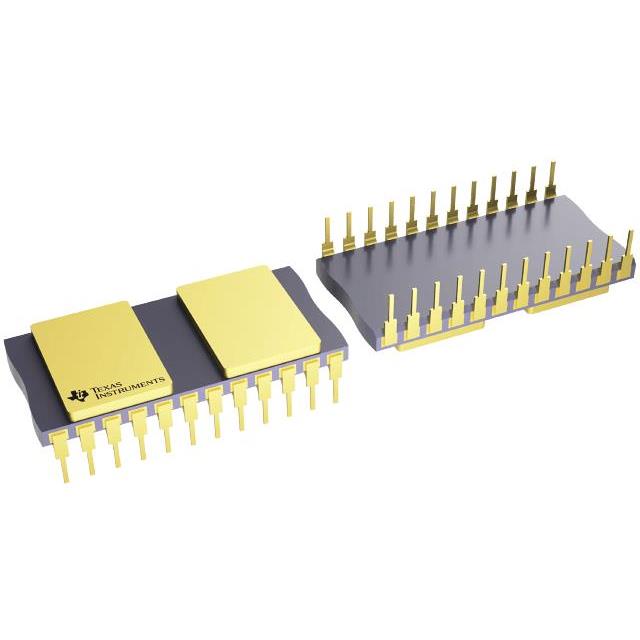

Texas Instruments
LMD18200-2D/883 Datasheet(PDF)
- 1. How to order LMD18200-2D/883?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that LMD18200-2D/883 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the LMD18200-2D/883. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the LMD18200-2D/883 price and inventory displayed accurate?
- The price and inventory of LMD18200-2D/883 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | LMD18200-2D/883 |
|---|---|
| Manufacturer | Texas Instruments |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Low Side (2) |
| Interface | Parallel |
| Technology | Bi-CMOS, DMOS |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 12V ~ 55V |
| Voltage - Load | 12V ~ 55V |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | 24-CDIP (0.600", 15.24mm) Window |
| Supplier Device Package | 24-CDIP SB |
