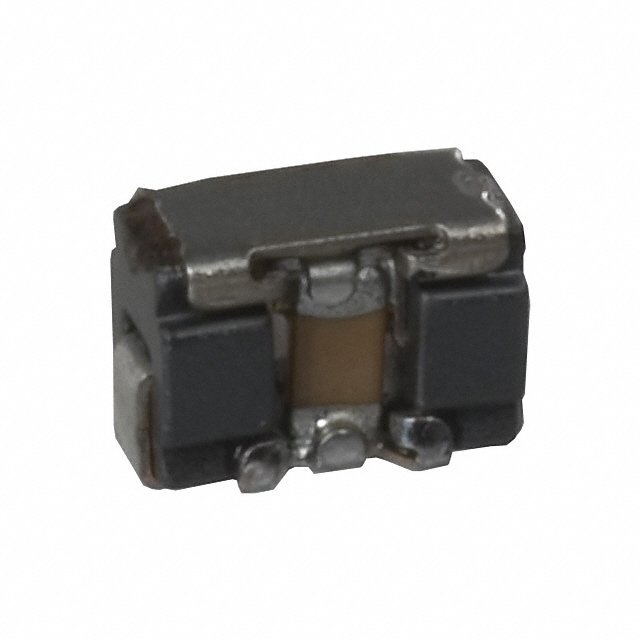

TDK Corporation
ACH32C-331-T001 Datasheet(PDF)
- 1. How to order ACH32C-331-T001?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that ACH32C-331-T001 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the ACH32C-331-T001. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the ACH32C-331-T001 price and inventory displayed accurate?
- The price and inventory of ACH32C-331-T001 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | ACH32C-331-T001 |
|---|---|
| Manufacturer | TDK Corporation |
| Series | ACH |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (T-Type) |
| Number of Channels | 1 |
| Attenuation Value | -20dB @ 200MHz ~ 800MHz |
| Resistance - Channel (Ohms) | 0.002 |
| Current | 6 A |
| Values | C = 330pF |
| ESD Protection | No |
| Operating Temperature | -40°C ~ 125°C |
| Applications | General Purpose |
| Voltage - Rated | 50V |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), 3 PC Pad |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height | 0.091" (2.30mm) |
