Analog Devices Inc.
ADL5240ACPZ-R7 Datasheet(PDF)
- 1. How to order ADL5240ACPZ-R7?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that ADL5240ACPZ-R7 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the ADL5240ACPZ-R7. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the ADL5240ACPZ-R7 price and inventory displayed accurate?
- The price and inventory of ADL5240ACPZ-R7 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | ADL5240ACPZ-R7 |
|---|---|
| Manufacturer | Analog Devices Inc. |
| Frequency | 100MHz ~ 4GHz |
| P1dB | 18.8dB |
| Gain | 19.6dB |
| Noise Figure | 3.1dB |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Supply | 93mA |
| Test Frequency | 3.6GHz |
| Mounting Type | Surface Mount |

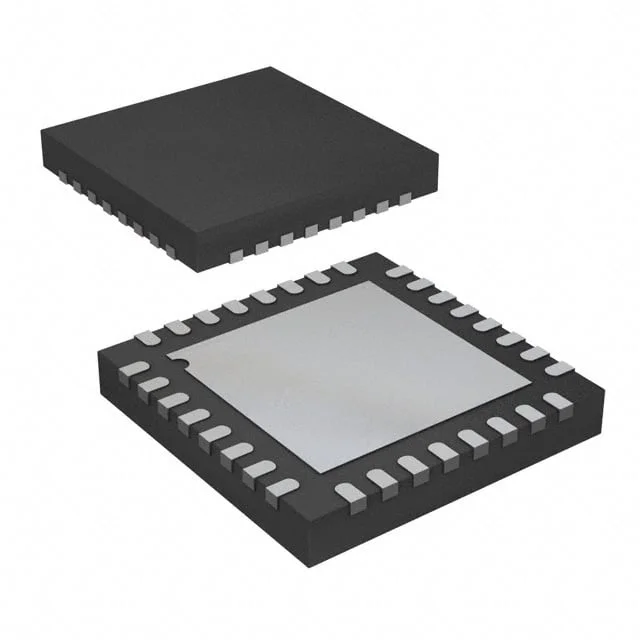

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Base Product Number | ADL5240 |
