Taiwan Semiconductor Corporation
TSM4ND65CI Datasheet(PDF)
- 1. How to order TSM4ND65CI?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that TSM4ND65CI is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the TSM4ND65CI. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the TSM4ND65CI price and inventory displayed accurate?
- The price and inventory of TSM4ND65CI fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | TSM4ND65CI |
|---|---|
| Manufacturer | Taiwan Semiconductor Corporation |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16.8 nC @ 10 V |
| Input Capacitance (Ciss) (Max) @ Vds | 596 pF @ 50 V |
| Vgs (Max) | ±30V |
| FET Feature | - |
| Power Dissipation (Max) | 41.6W (Tc) |
| Rds On (Max) @ Id, Vgs | 2.6Ohm @ 1.2A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |

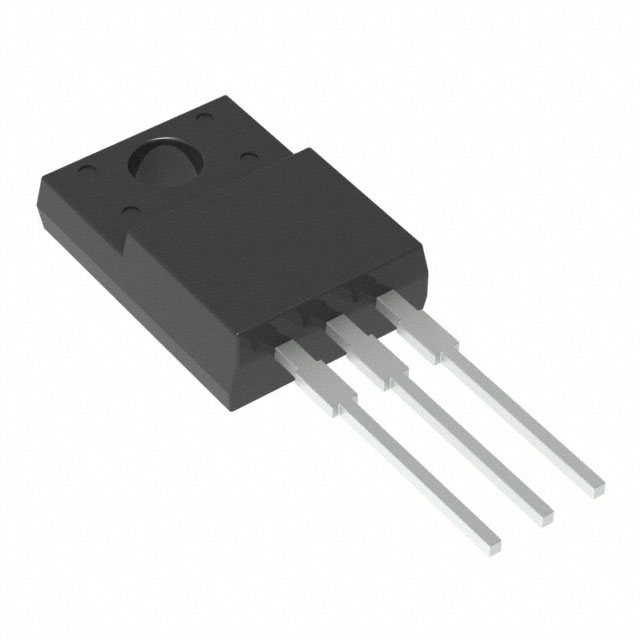

| Supplier Device Package | ITO-220 |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
