onsemi

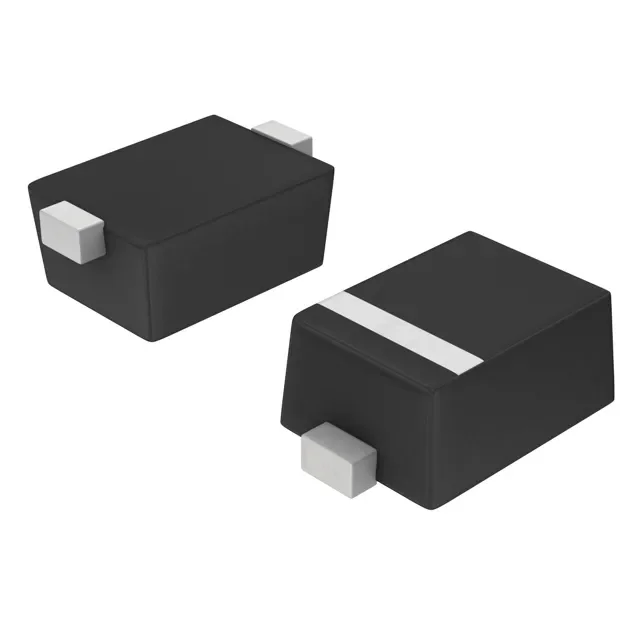

NSR0130P2T5G Datasheet(PDF)
- 1. How to order NSR0130P2T5G?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that NSR0130P2T5G is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the NSR0130P2T5G. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the NSR0130P2T5G price and inventory displayed accurate?
- The price and inventory of NSR0130P2T5G fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | NSR0130P2T5G |
|---|---|
| Manufacturer | onsemi |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 100mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 525mV @ 100mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 3µA @ 30V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-923 |
| Supplier Device Package | SOD-923 |
| Operating Temperature - Junction | -55°C ~ 125°C |
