Diodes Incorporated
DMPH1006UPSQ-13 Datasheet(PDF)
- 1. How to order DMPH1006UPSQ-13?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that DMPH1006UPSQ-13 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the DMPH1006UPSQ-13. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the DMPH1006UPSQ-13 price and inventory displayed accurate?
- The price and inventory of DMPH1006UPSQ-13 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | DMPH1006UPSQ-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 124nC @ 8V |
| Input Capacitance (Ciss) (Max) @ Vds | 6334pF @ 10V |
| Vgs (Max) | ±8V |
| FET Feature | - |
| Power Dissipation (Max) | 3.2W |
| Rds On (Max) @ Id, Vgs | 6 mOhm @ 15A, 4.5V |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |

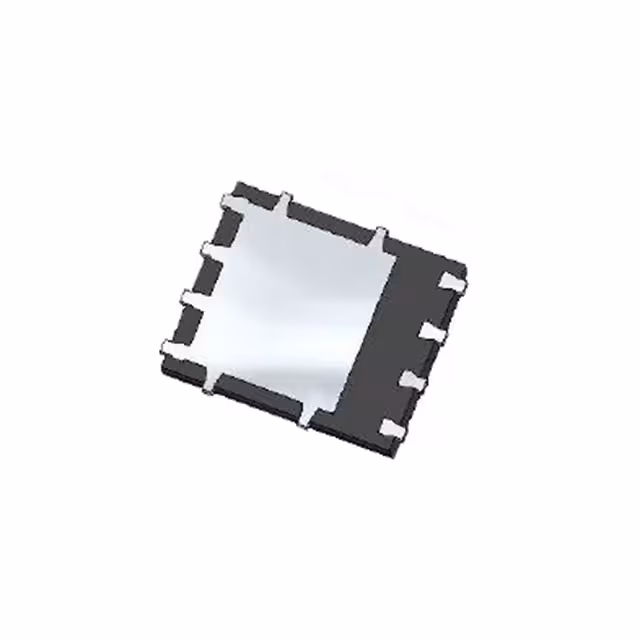

| Supplier Device Package | PowerDI5060-8 |
| Package / Case | 8-PowerTDFN |
