onsemi
SS2003M-TL-W Datasheet(PDF)
- 1. How to order SS2003M-TL-W?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that SS2003M-TL-W is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the SS2003M-TL-W. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the SS2003M-TL-W price and inventory displayed accurate?
- The price and inventory of SS2003M-TL-W fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | SS2003M-TL-W |
|---|---|
| Manufacturer | onsemi |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 400 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns |
| Current - Reverse Leakage @ Vr | 1.25 mA @ 15 V |
| Capacitance @ Vr, F | 75pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |

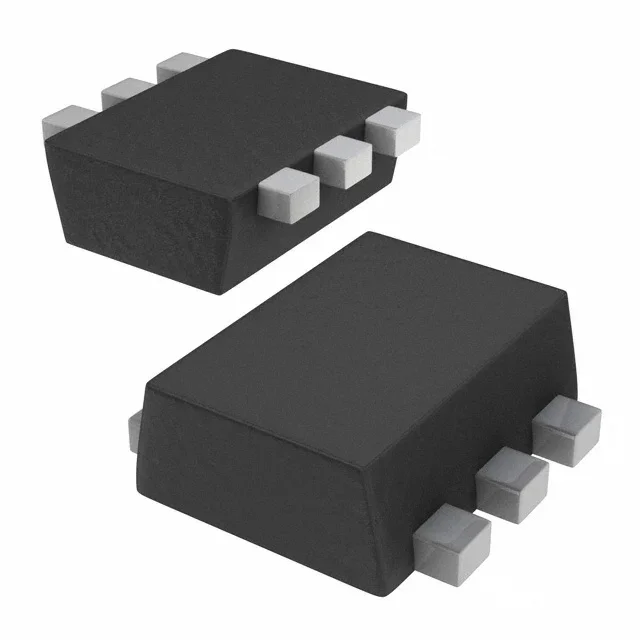

| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | 6-MCPH |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Base Product Number | SS2003 |
