STMicroelectronics
VIPER012XSTR Datasheet(PDF)
- 1. How to order VIPER012XSTR?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that VIPER012XSTR is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the VIPER012XSTR. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the VIPER012XSTR price and inventory displayed accurate?
- The price and inventory of VIPER012XSTR fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | VIPER012XSTR |
|---|---|
| Manufacturer | ST |

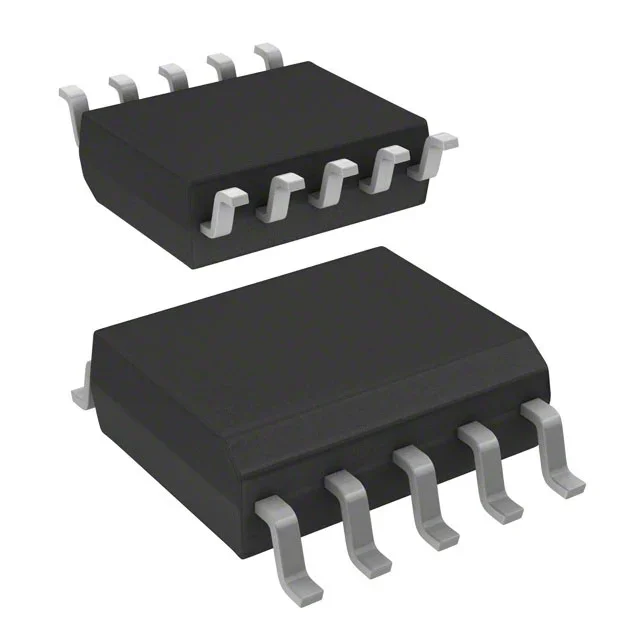

| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C~150°C(TJ) |
| Duty Cycle | 80% |
| Frequency - Switching | 30kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Output Isolation | Either |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Supplier Device Package | 10-SSOP |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 8 V |
| Power (Watts) | 7 W |
| Base Product Number | VIPER012 |
