Diodes Incorporated
BAS40-04-7-F Datasheet(PDF)
- 1. How to order BAS40-04-7-F?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that BAS40-04-7-F is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the BAS40-04-7-F. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the BAS40-04-7-F price and inventory displayed accurate?
- The price and inventory of BAS40-04-7-F fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | BAS40-04-7-F |
|---|---|
| Manufacturer | Diodes Incorporated |
| Diode Configuration | 1 Pair Series Connection |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 40 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 200 nA @ 30 V |
| Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount |

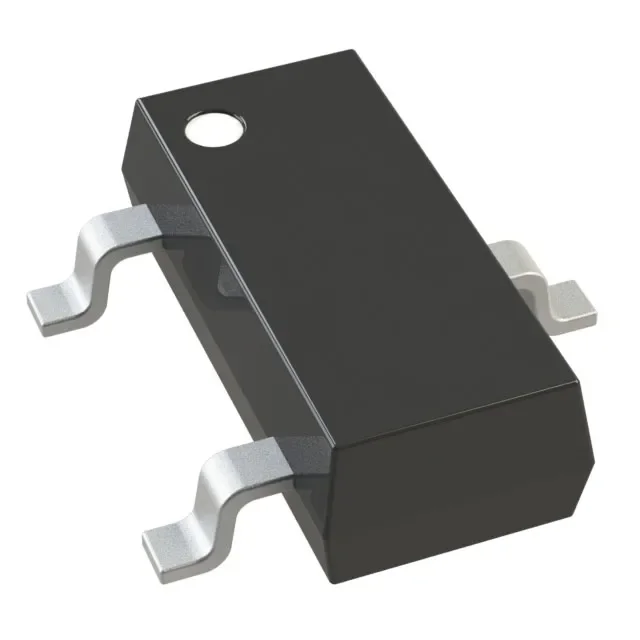

| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAS40 |
