Torex Semiconductor Ltd
XC9505B093AR-G Datasheet(PDF)
- 1. How to order XC9505B093AR-G?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that XC9505B093AR-G is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the XC9505B093AR-G. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the XC9505B093AR-G price and inventory displayed accurate?
- The price and inventory of XC9505B093AR-G fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | XC9505B093AR-G |
|---|---|
| Manufacturer | Torex Semiconductor Ltd |
| Series | XC9505 |
| Output Type | PWM Signal |
| Function | Step-Up, Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 10V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 100% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

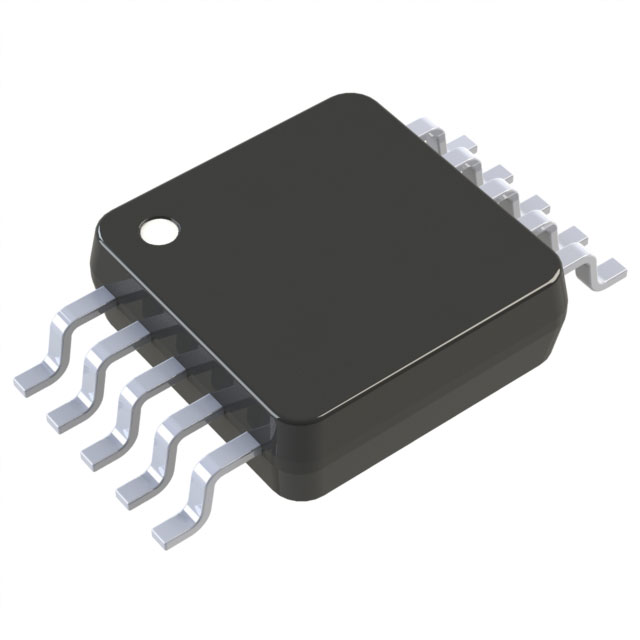

| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | XC9505 |
