Nexperia
PIMN31,115 Datasheet(PDF)
- 1. How to order PIMN31,115?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that PIMN31,115 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the PIMN31,115. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the PIMN31,115 price and inventory displayed accurate?
- The price and inventory of PIMN31,115 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | PIMN31,115 |
|---|---|
| Manufacturer | Nexperia |
| Series | Automotive, AEC-Q100 |

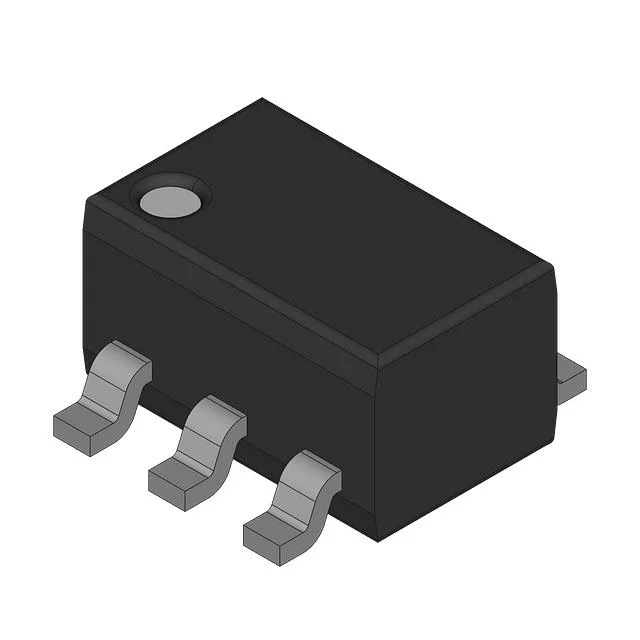

| Package / Case | SC-74, SOT-457 |
| Mounting Type | Surface Mount |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Power - Max | 420mW |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 50mA, 5V |
| Resistor - Base (R1) | 1kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| Supplier Device Package | 6-TSOP |
| Base Product Number | PIMN31 |
