onsemi
FSD146MRBN Datasheet(PDF)
- 1. How to order FSD146MRBN?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that FSD146MRBN is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the FSD146MRBN. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the FSD146MRBN price and inventory displayed accurate?
- The price and inventory of FSD146MRBN fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | FSD146MRBN |
|---|---|
| Manufacturer | ON |
| Series | FPS™ |

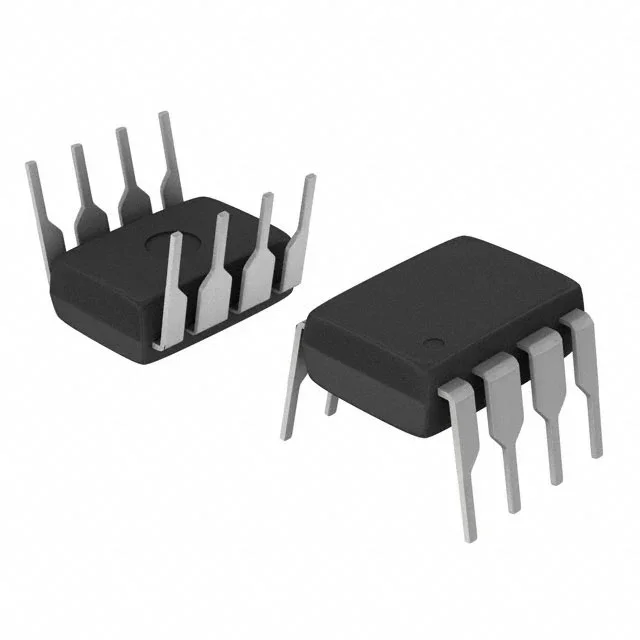

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Duty Cycle | 67% |
| Frequency - Switching | 67kHz |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Output Isolation | Isolated |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 23V |
| Supplier Device Package | 8-DIP |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Voltage - Start Up | 12 V |
| Power (Watts) | 35 W |
| Base Product Number | FSD146 |
