Fairchild
- 1. How to order HGTG27N120BN?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that HGTG27N120BN is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the HGTG27N120BN. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the HGTG27N120BN price and inventory displayed accurate?
- The price and inventory of HGTG27N120BN fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.

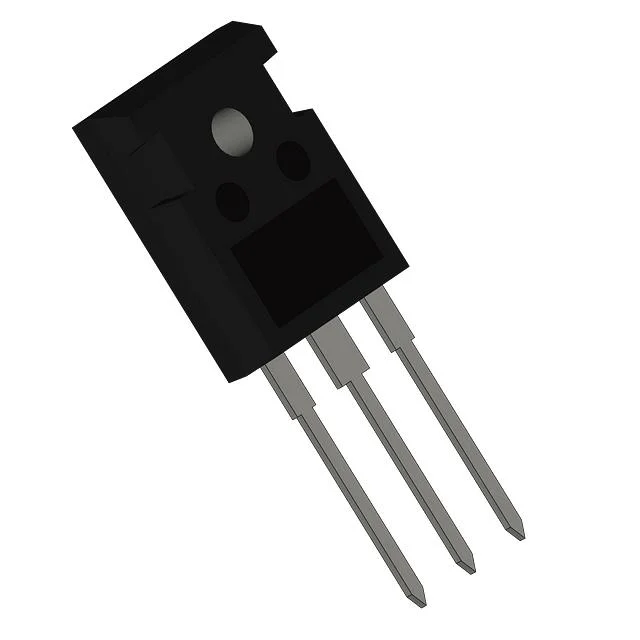

| Part Number | HGTG27N120BN |
|---|---|
| Manufacturer | Fairchild |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 27A |
| Supplier Device Package | TO-247 |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 24ns/195ns |
| Switching Energy | 2.2mJ (on), 2.3mJ (off) |
| Test Condition | 960V, 27A, 3Ohm, 15V |
| Gate Charge | 270 nC |
| Current - Collector (Ic) (Max) | 72 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 216 A |
| Power - Max | 500 W |
