onsemi
NCP5383MNR2G Datasheet(PDF)
- 1. How to order NCP5383MNR2G?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that NCP5383MNR2G is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the NCP5383MNR2G. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the NCP5383MNR2G price and inventory displayed accurate?
- The price and inventory of NCP5383MNR2G fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | NCP5383MNR2G |
|---|---|
| Manufacturer | onsemi |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 2 |
| Output Phases | 2 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 13.2V |
| Frequency - Switching | 100kHz ~ 400kHz |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |

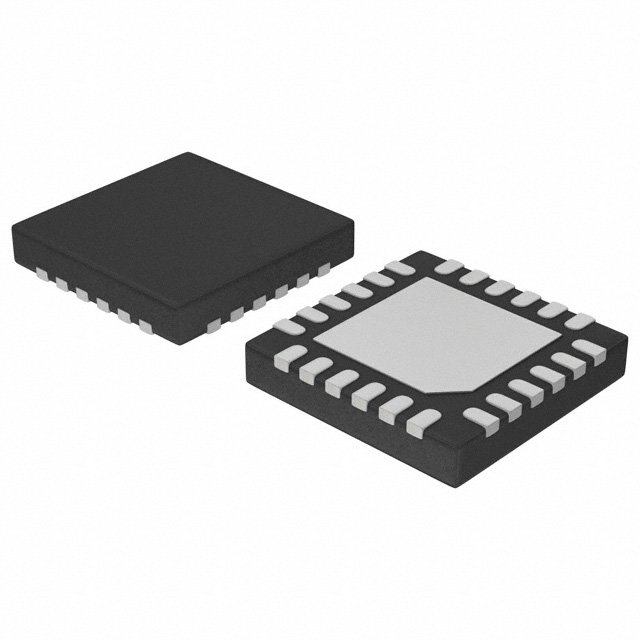

| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-QFN (4x4) |
| Base Product Number | NCP5383 |
