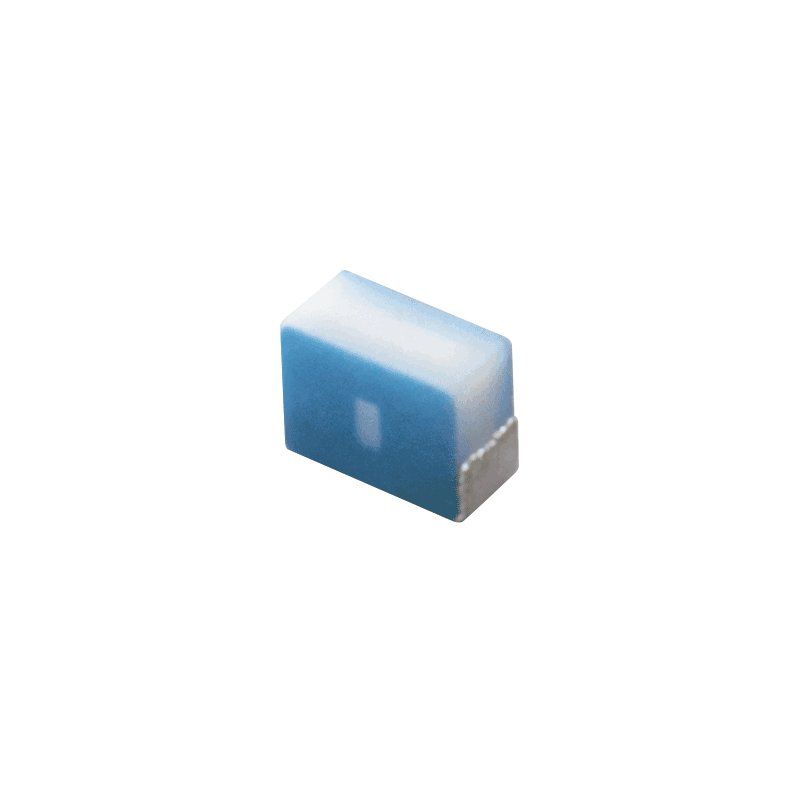

Murata Electronics
LQP02HV1N0C02L Datasheet(PDF)
- 1. How to order LQP02HV1N0C02L?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that LQP02HV1N0C02L is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the LQP02HV1N0C02L. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the LQP02HV1N0C02L price and inventory displayed accurate?
- The price and inventory of LQP02HV1N0C02L fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | LQP02HV1N0C02L |
|---|---|
| Manufacturer | Murata Electronics |
| Status | In Production,New |
| Characteristic | Up to 125℃,Film type,Reflow soldering,Super High Q type |
| Recommended Applications | Consumer equipment |
| Specific Applications | Consumer equipment,Medical equipment [GHTF A/B/C] except for implant & surgery & auto injector,Industrial equipment except for transportation & facility & energy equipment |
| L size |
0.4 ±0.02mm |
| W size |
0.2 ±0.02mm |
| T size |
0.3 ±0.02mm |
| Size code inch (mm) | 01005 (0402) |
| Inductance | 1nH |
| Inductance Tolerance | ±0.2nH |
| Rated Current (Itemp) | 900mA |
| Rated Current (Isat) | 300mA(Max.) / 400mA(Typ.) |
| Rdc (max.) | 0.04Ω |
| SRF (min.) | 16.6GHz |
| Series | LQP02HV_02 |
| Brand | Murata |
| Class of magnetic shield | Non-Shielded |
| DC Resistance Intermediate Values | 0.43Ω |
| Feature Text | AEC-Q200 Conforming Products *Please contact us if you have any questions. |
| Mass(typ.) | 0.085mg |
| Operating Temperature Range (Self-temperature rise is included) | -40℃ to 125℃ |
| Product Name | Film type RF Inductor |
| REACH Support | Yes |
| RoHS Support | Yes |
| Soldering Support | Reflow soldering |
| Tight | No |
| Operating Temperature Range(Self-temperature rise is not included) | -55℃ to 125℃ |
| Operating Temperature Range | -55℃ to 125℃ |
| Q(min.) | 17 |
| Q Test Frequency | 500MHz |
