Texas Instruments
LMG1210RVRT Datasheet(PDF)
- 1. How to order LMG1210RVRT?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that LMG1210RVRT is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the LMG1210RVRT. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the LMG1210RVRT price and inventory displayed accurate?
- The price and inventory of LMG1210RVRT fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | LMG1210RVRT |
|---|---|
| Manufacturer | Texas Instruments |
| Driven Configuration | Half-Bridge |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.75V ~ 5.25V, 6V ~ 18V |
| Current - Peak Output (Source, Sink) | 1.5A, 3A |
| Input Type | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | 200 V |
| Rise / Fall Time (Typ) | 500ps, 500ps |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |

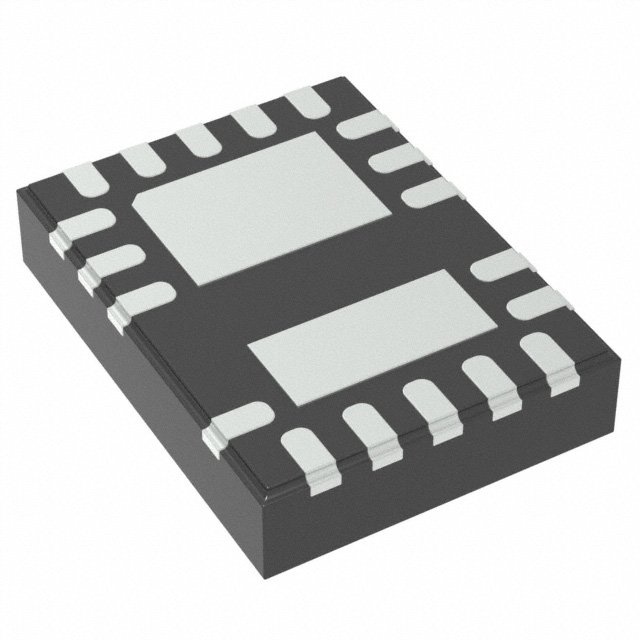

| Package / Case | 19-WFQFN Exposed Pad |
| Supplier Device Package | 19-WQFN (3x4) |
| Base Product Number | LMG1210 |
