Richtek USA Inc.
RT9742GGJ5F Datasheet(PDF)
- 1. How to order RT9742GGJ5F?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that RT9742GGJ5F is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the RT9742GGJ5F. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the RT9742GGJ5F price and inventory displayed accurate?
- The price and inventory of RT9742GGJ5F fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | RT9742GGJ5F |
|---|---|
| Manufacturer | Richtek USA Inc. |
| Switch Type | USB Switch |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 2.7V ~ 6V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1A |
| Rds On (Typ) | 55mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

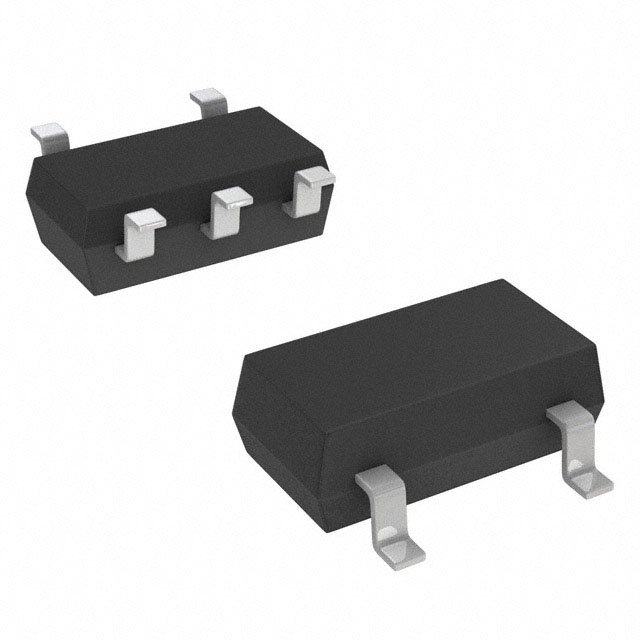

| Supplier Device Package | TSOT-23-5 |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Base Product Number | RT9742 |
