ROHM Semiconductor
QH8M22TCR Datasheet(PDF)
- 1. How to order QH8M22TCR?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that QH8M22TCR is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the QH8M22TCR. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the QH8M22TCR price and inventory displayed accurate?
- The price and inventory of QH8M22TCR fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | QH8M22TCR |
|---|---|
| Manufacturer | ROHM Semiconductor |
| FET Type | MOSFET (Metal Oxide) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 40V |
| Current - Continuous Drain (Id) @ 25°C | 4.5A (Ta), 2A (Ta) |
| Rds On (Max) @ Id, Vgs | 46mOhm @ 4.5A, 10V, 190mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 10µA, 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 2.6nC @ 10V, 9.5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 193pF @ 20V, 450pF @ 20V |
| Power - Max | 1.1W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |

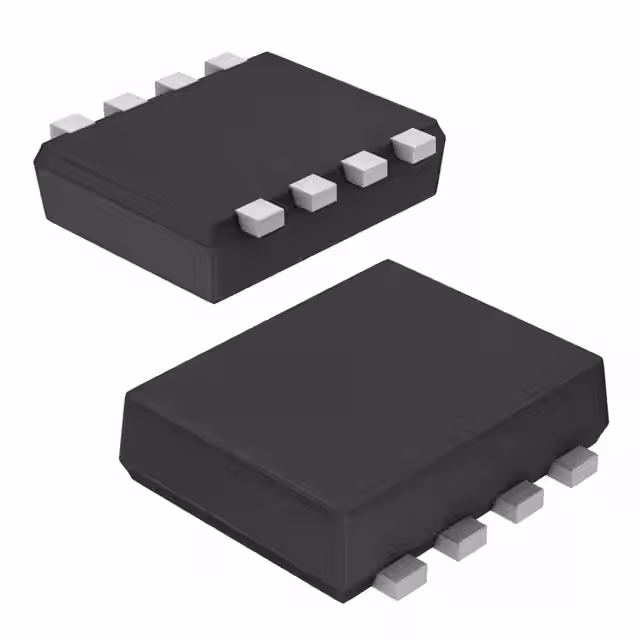

| Package / Case | 8-SMD, Flat Lead |
| Supplier Device Package | TSMT8 |
