onsemi

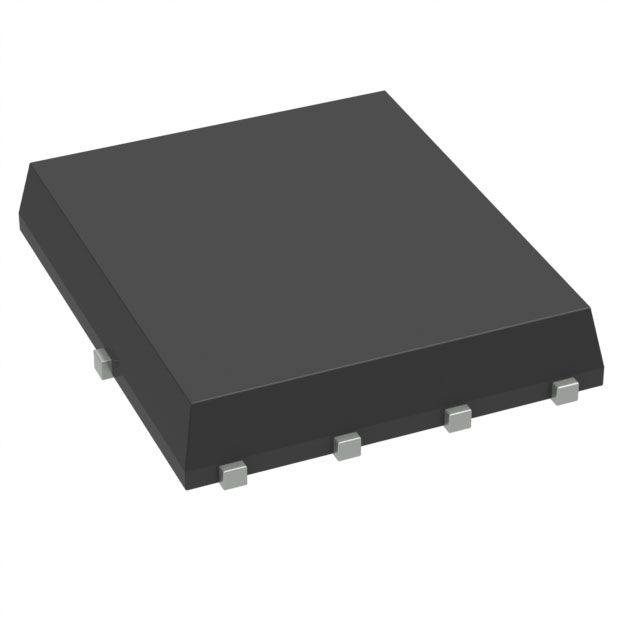

FDMS7560S Datasheet(PDF)
- 1. How to order FDMS7560S?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that FDMS7560S is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the FDMS7560S. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the FDMS7560S price and inventory displayed accurate?
- The price and inventory of FDMS7560S fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | FDMS7560S |
|---|---|
| Manufacturer | onsemi |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta), 49A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs(th) (Max) @ Id | 3V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 93nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 5945pF @ 13V |
| Vgs (Max) | ±20V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 89W (Tc) |
| Rds On (Max) @ Id, Vgs | 1.45 mOhm @ 30A, 10V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Power56 |
| Package / Case | 8-PowerTDFN |
