Mini-Circuits

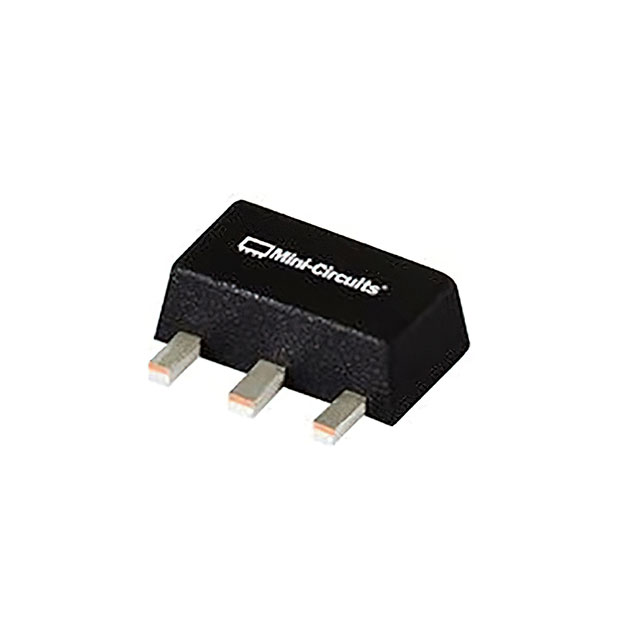

PGA-105+ Datasheet(PDF)
- 1. How to order PGA-105+?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that PGA-105+ is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the PGA-105+. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the PGA-105+ price and inventory displayed accurate?
- The price and inventory of PGA-105+ fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | PGA-105+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Frequency | 40MHz ~ 2.6GHz |
| P1dB | 20.9dBm |
| Gain | 15.9dB |
| Noise Figure | 2.1dB |
| RF Type | CATV, DBS, LTE, MMDS, Wireless LAN |
| Voltage - Supply | 4.8V ~ 5.2V |
| Current - Supply | 63mA |
| Test Frequency | 40MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89 |
