Diodes Incorporated
AP3917DS7-13 Datasheet(PDF)
- 1. How to order AP3917DS7-13?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that AP3917DS7-13 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the AP3917DS7-13. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the AP3917DS7-13 price and inventory displayed accurate?
- The price and inventory of AP3917DS7-13 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | AP3917DS7-13 |
|---|---|
| Manufacturer | Diodes Incorporated |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Buck, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 8.2V ~ 8.8V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | 1W |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TA) |

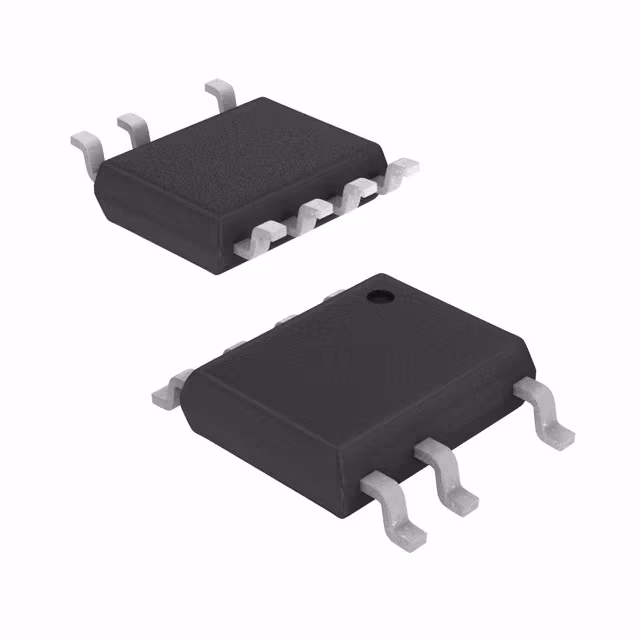

| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SO |
| Mounting Type | Surface Mount |
