Vishay General Semiconductor - Diodes Division
LL4148-GS08 Datasheet(PDF)
- 1. How to order LL4148-GS08?
- Newyang currently provides peer-to-peer order processing. After submitting the RFQ, our professional team will contact you with competitive prices.
- 2. How does Newyang guarantee that LL4148-GS08 is from the original manufacturer or authorized agents?
- Our experienced quality control team rigorously verifies and tests the LL4148-GS08. All suppliers must pass our qualification reviews. We focus heavily on product channels and quality, strictly auditing suppliers to ensure you can purchase with confidence.
- 3. Are the LL4148-GS08 price and inventory displayed accurate?
- The price and inventory of LL4148-GS08 fluctuate frequently and are updated regularly. Our quotes are typically valid for up to 5 days.
| Part Number | LL4148-GS08 |
|---|---|
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 75 V |
| Current - Average Rectified (Io) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 50 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 75 V |
| Capacitance @ Vr, F | 4pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |

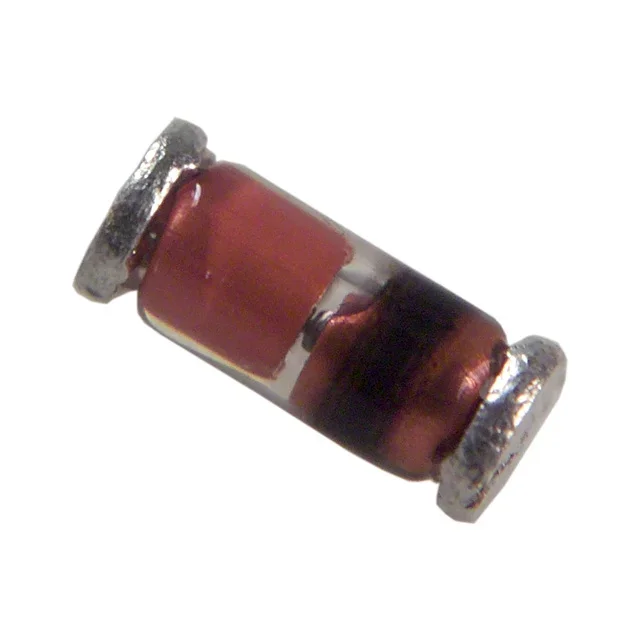

| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | SOD-80 MiniMELF |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | LL4148 |
