The Vishay IHHP0806AZERR24M01 is a high-power, ultra-precise surface-mount resistor offering excellent stability, low TCR, and high reliability for demanding industrial and automotive applications.
Technical Specifications
- Resistance Value: 24 mΩ (milliohms)
- Tolerance: ±1%
- Power Rating: Up to 3 W (at 70°C)
- Temperature Coefficient of Resistance (TCR): ±50 ppm/°C
- Package Size: 0806 (2015 metric)
- Termination: SMD (Surface-Mount Device)
- Operating Temperature Range: -55°C to +155°C
- Construction: Thick-film, high-power design
Key Features
- Magnetic alloy power choke coil

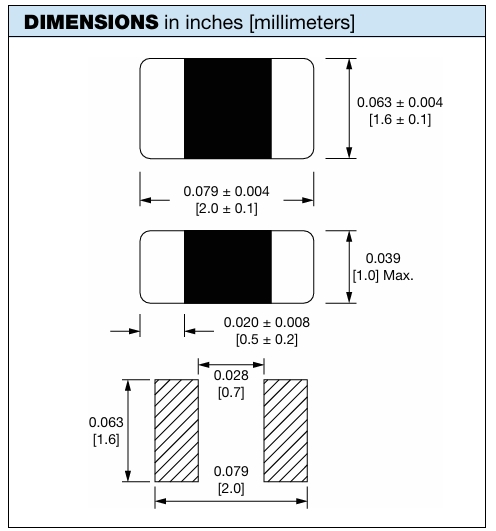

- Miniature size (2.0 x 1.6) and low profile
- Magnetic shielded
- Low acoustic noise and high efficienc
Applications
- PDA / notebook / desktop / server applications
- High current POL converters
- Low profile, high current power supplies
- Battery powered devices
- DC/DC converters in distributed power systems
- DC/DC converter for Field Programmable Gate Array (FPGA)
Why Choose Vishay IHHP0806AZERR24M01?
Vishay’s IHHP series resistors are known for their reliability and precision. The IHHP0806AZERR24M01 is particularly suited for applications requiring high power, low resistance, and excellent thermal stability. Its compact SMD footprint makes it ideal for modern PCB designs where space and efficiency are critical.
As a reliable distributor of electronic components, NewYang offers real-time inventory tracking, expert component selection support, and customized solutions—empowering engineers to achieve the perfect balance between performance, reliability, and cost.
